SCRUB SINKS

Source: Continental Metal Products Co.
CMP Surgical Scrub Sinks are constructed of type 304 stainless steel with No. 4 finish. All corners are welded, and all welds are ground and polished to match No. 4 finish
Continental Metal Products Co.

FEATURES:


  • Stainless steel construction
  • Removable bay panels

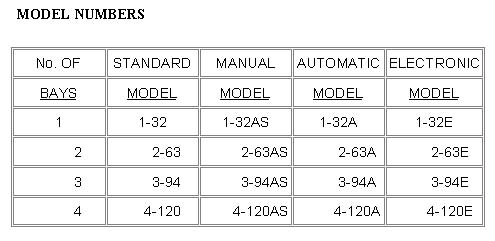

  • Available in one, two, three, or four bay sizes
  • Numreous optional manual and electronic controls

DIMENSIONS:
32" (813 mm), 63" (1600 mm), 94" (2388 mm), or 120" (3048 mm) wide by: 26" (660 mm) deep x 38" (965 mm) high (standard model), or 27 1/4" (692 mm) deep x 38 3/4" (984 mm) high (other models).

SPECIFICATIONS
CMP Surgical Continental Metal Products Co. are constructed of type 304 stainless steel with No. 4 finish. All corners are welded, and all welds are ground and polished to match No. 4 finish. Hands free water control is accomplished either by pressing a front panel with the knee or by an electronic infrared sensor (see various models & options).

The sink is constructed of No. 16 gauge (I.5 mm) stainless steel with horizontal and vertical corners coved to 1/4" (6 mm) radius. The underside of the sink is coated with sound deadening material. The sink is designed to eliminate backsplash. Each station is equipped with a 2" (51mm) I.P.S. stainless steel drain, an antisplash spray arm, and (on 2, 3, & 4 bay models) a removable Plexiglas partition to isolate each bay.

The outer sink enclosure is made of No. 18 gauge (I2 mm) stainless steel and has easy to remove hinged stainless panels on the front for access to plumbing and controls.

CONTROLS
CMP Continental Metal Products Co. all have a thermal, non-electric (no shock) adjustable hot and cold water mixing valve with pressure balancing control for maintaining constant water temperature. The mixing valve is adjustable by the user via a hand control, which is on the top of the sink on all models other than the standard model. Preset high limit stops in the valve prevent water flow in excess of 115°F.

Each bay has its own waterflow control. On the Standard and AS ("Manual") models, the water is turned on and off using the knee-control panel. On the Automatic model the water is turned on for a set time by pressing an electronic touch pad at the top of the sink. The Electronic control model activates the water flow automatically when the user's hands are placed under the spout.

INSTALLATION
Sinks are supported by two or more chair carriers, supplied by others (optionally available from CMP). Alternatively, a stainless steel pedestal base may be ordered for supporting the sink from the floor.
Service connections required are a 3/4" (19 mm) I.P.S. hot water and a 3/4" (19 mm) I.P.S. cold water feed and a 2" (51 mm) I.P.S. waste for each bay.

OPTIONS:

  • Stainless Steel Pedestal Base for floor mounting
  • In-Wall Chair Carrier System for wall mounting
  • Adjustable Manual Timer(s)
  • Digital Display Timer(s), with Pre-Set l, 3, 5 or 10 minute cycles (I20 VA C.)
  • Knee-Operated Soap Dispenser Pump
  • 20 Watt Light (120 V.A.C.) for illuminating each bay
  • Stainless steel Wall Shelf for mounting above sink
  • Emergency manually activated water flow for Electronic sinks
